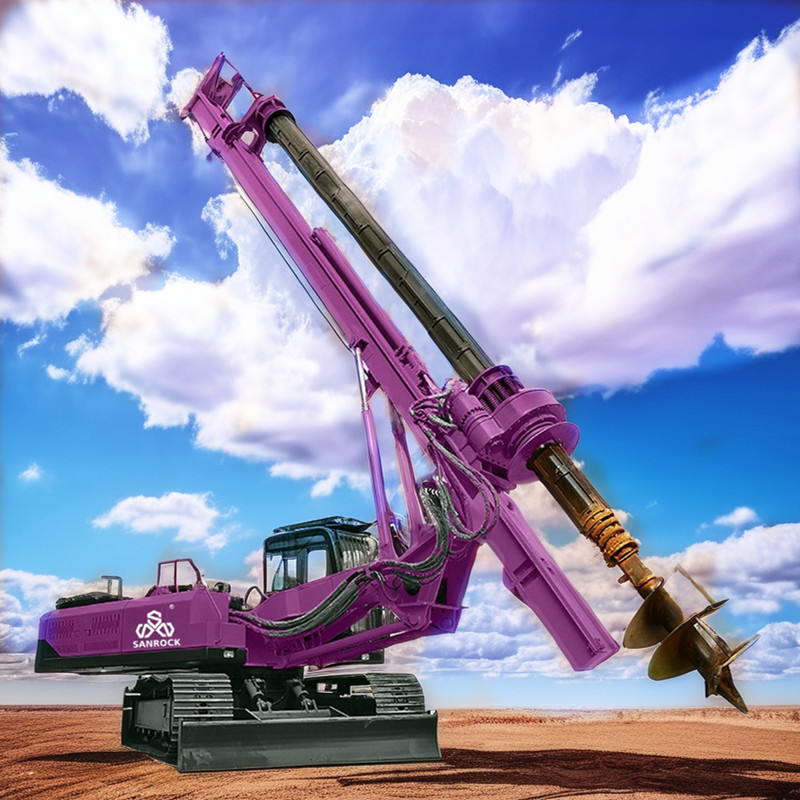

Crawler Rotary Drilling Rig Foundation Construction Hydraulic Rotary Drilling Rig Machine

Name: Crawler Rotary Drilling Rig Foundation Construction Hydraulic Rotary Drilling Rig Machine
Brand: SANROCK
Price: 1 USD

Quality Crawler Rotary Drilling Rig Foundation Construction Hydraulic Rotary Drilling Rig Machine for sale

Brand Name : SANROCK

Model Number : SRP13

Certification : CE ISO 9001:2015

Place of Origin : Zhejiang, China

MOQ : 1 Set/Sets

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000Set/Sets per Month

Delivery Time : 15-30days

Packaging Details : Nude package for machines, Wooden box package for spare parts, Or customer demand.

Product name : Rotary Drilling Rig

Name : Rotary Drilling Machine

Type : Rotary Drilling Rig

Power type : Diesel

Drilling Depth : 13m

Drilling diameter : 1000mm

Crawler Length : 2495mm

Chassis Width : 1880mm

Overall Drilling Weight : 9.3T

Auxiliary Winch Rated Tension : 14KN

Feed Strock : 1.1m

Rotate speed : 10-45rpm

Main Winch Rated Tension : 38KN

Rated Torque : 50KN.m

Weight : 8600KG

Application : Engineering Construction，Pile Foundation,Blasthole drilling

Feature : High Drilling Efficiency,Hydraulic Controlling,Portable

Advantage : High Performance,Fast Pile Driving Speed

Max.Pullling force : 27KN

Dimension(l*w*h) : 3100*1920*3500mm

Warranty : 1 Year

Condition : New

Contact Now

Performance characteristics:
SRP13 rotary drilling rig is a small-diameter rotary drilling rig with high work efficiency and low operating cost. The body size is moderate and easy to transport and use it can be hauled by ordinary open-top trucks. It’s the first choice for drilling in narrow spaces.

Crawler Rotary Drilling Rig Foundation Construction Hydraulic Rotary Drilling Rig Machine

Products Description

Product name	Rotary Drilling Machine
Type	Rotary Drilling Rig
Model Number	SRP13
1.Installed On XCMG Excavator	XE55DA	2.Installed On SUNWARD Excavator	SWE60E
Engine	KUBOTA	Engine	YANMAR
Max.Drilling Diameter(mm)	1000	Max.Drilling Diameter(mm)	1000
Max.Drilling Depth(m)	13	Max.Drilling Depth(m)	13
Rotary Head		Rotary Head
Rated Torque(KN.m)	50	Rated Torque(KN.m)	50
Feed Strock(m)	1.1	Feed Strock(m)	1.1
Rotary Speed(rpm)	10-45	Rotary Speed(rpm)	10-45
Max.Pullling force(KN)	27	Max.Pullling force(KN)	27
Max.Pushing force(KN)	25	Max.Pushing force(KN)	25
Winch		Winch
Main Winch Rated Tension(KN)	38	Main Winch Rated Tension(KN)	38
Auxiliary Winch Rated Tension(KN)	14	Auxiliary Winch Rated Tension(KN)	14
Crawler Chassis		Crawler Chassis
Chassis Width(mm)	1880	Crawler Length(mm)	2495
Chassis Width(mm)	1880	Chassis Width(mm)	1880
Overall Drilling Weight(T)	8.6	Overall Drilling Weight(T)	9.3
Dimension (transportation condition)	310019203500mm	Dimension (transportation condition)	310019003500mm

Crawler Rotary Drilling Rig Foundation Construction Hydraulic Rotary Drilling Rig Machine

Company Profile

Crawler Rotary Drilling Rig Foundation Construction Hydraulic Rotary Drilling Rig Machine

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.

2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
